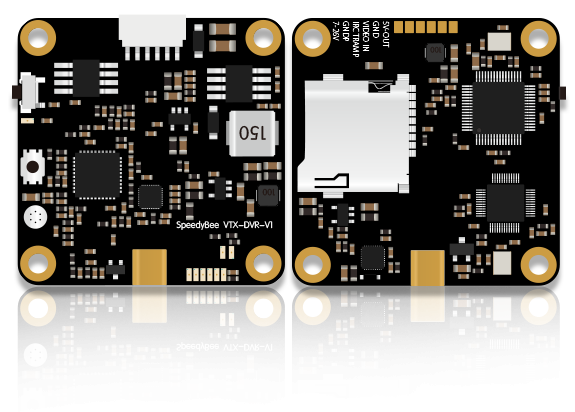

Speedy Bee VTX-DVR NEW!

Speedy Bee VTX-DVR NEW!

  • US $34.99

    US $2799

  • Product Code: SPDB-DVR-VTX
  • Availability: In Stock

Description

Ever wish you could just have on board dvr without adding an extra component to your quads? Now you can get dvr on your vtx with the new Speed Bee vtx/dvr. Capture interference free video as your fpv camera sees it so you get crystal clear analog footage. With the newer model cameras, you can get amazing high quality footage without an additional hd camera.


Speedy Bee VTX-DVR

VTX & DVR 2 in 1

Speedy Bee VTX-DVR
  •

Support Betaflight
CMS Control / IRC Tramp

Speedy Bee VTX-DVR

Support Betaflight
VTX PIT MODE

Speedy Bee VTX-DVR
Speedy Bee VTX-DVR
Speedy Bee VTX-DVR

Package

  • 1 X VTX-DVR
  • 1 X MMCX antenna
  • 1 X MMCX to SMA Cable
  • 1 X 1.0mm 6pin Cable
  • 1 X Set of screws

Parameter

ModelSpeedy Bee VTX-DVR
DVRVideo inCVBS@1Vp-p 75Ω
EncoderMJPEG@AVI
ResolutionVGA ( 640 x 480 ) @ 30fps ( NTSC ) / 25 fps ( PAL )
AudioBuilt-in MIC
Micro SD CardMax 32G
VTXFrequency Channel5.8G 48CH
Output Power25mW / 200mW / 600mW
Video Input Impedance75 Ohm
Antenna ConnectorMMCX
Power inDC 7-26V
Working CurrentDC 9V @Max 450mA
Power outDC 5V @Max 250mA
Net Weight7.5 g (without antenna)
Dimension36mm*36mm @30.5 × 30.5 M3 holes

Reviews (0)

Write a review

Please login or register to review

Tags:   Speedy Bee VTX-DVR
